All new Digi-line electric radiators from Electrorad


The all new Digi-line range – now made in Britain. Re-Launched with all new electronics and components. Looks and heats like a regular central heating radiator but with some very clever state of the art electronics to ensure ultimate control and minimum energy usage.

The completely new Digi-Line range has been designed and is manufactured in Britain, to give electricians the same choice of radiator type and selection of sizes as plumbers have always been used to. The radiators are filled with a thermal fluid to transfer heat to the whole of the surface area without the need for any pump or moving parts. The fluid is heated by 100% efficiency electric elements which are controlled by the most advanced thermostat electronics available.

The radiator body is constructed in steel and powder coated to ensure a high quality, extremely long lasting and robust finish. The range is available in 500mm & 300mm heights and power ratings from 500 watts to 2,000 watts. Single panel and double panel radiators are available and both have convection fins to ensure the perfect balance of radiant and convected heat. Only the very best components and materials have been used in the new Digi-Line range.

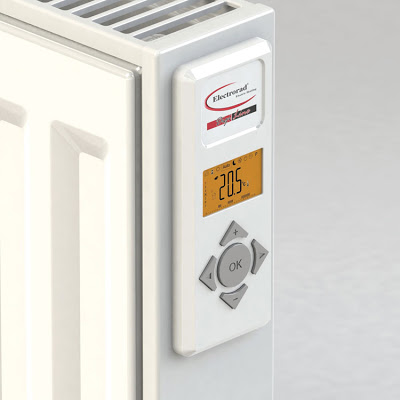

The New Digi-Line thermostat is a double proportional band control (PI & PWM) giving the best accuracy possible of +/- 0.1ºC. The room temperature is sensed below the radiator where the room air temperature is at its lowest and there is no heat from the radiator to affect the reading. Each radiator thermostat also has a radio frequency receiver built in, so central control is easy to achieve by using the optional 4 zone radio frequency central programmer.

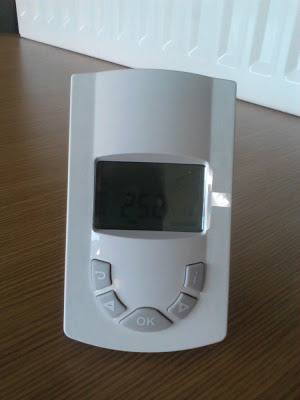

The optional central programmer is battery powered and uses radio frequency signals to communicate with these electric radiators, so no wiring is required. It can be wall mounted or can free stand. Every radiator can have different temperature settings, and every zone can have different operating times. The central programmer is capable of separately programming up to 4 separate zones. This provides for the ultimate electric central heating system with absolute control over temperatures, times and energy usage.


There are some more very special, unique and energy saving features built in to the new electronics. All features do not have to be used but can be activated if required.

  1. Energy saving open window feature – this senses when a window has been opened and stops the radiator heating until the window is closed.
  2. Surface temperature control – The surface temperature can be operated at the full 90ºC or reduced to a maximum of 75ºC or a maximum of 60ºC. (Surface temperature reduction will reduce the heating power)
  3. Double panel radiator smart control – If the room temperature is within 1ºC of the set point, the front panel only will operate. If the room temperature is more than 1ºC from the set point, the back panel will also operate to act as a boost and re-heat the room faster.

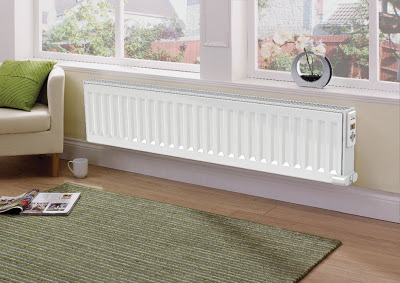

Digi-Line radiators are also available in 300mm height which is particularly suitable to fit onto the dwarf wall of conservatories. It may be the case that you have an existing boiler fed central heating system, but have added a conservatory and don’t like the idea of running piping to the new conservatory. Using a Digi-Line radiator also means that you will have an independent heat source for the conservatory which will not affect the running of the main system. A Digi-Line radiator will match visually with your existing radiators.
